Apartment near the Palace of Sports: 250 m³/h ventilation and ducted multi-split air conditioning

Video: Design, installation, and commissioning of indoor climate systems for a top-floor apartment: a 250 m³/h ventilation unit and ducted multi-split air conditioners for comfortable summer cooling.

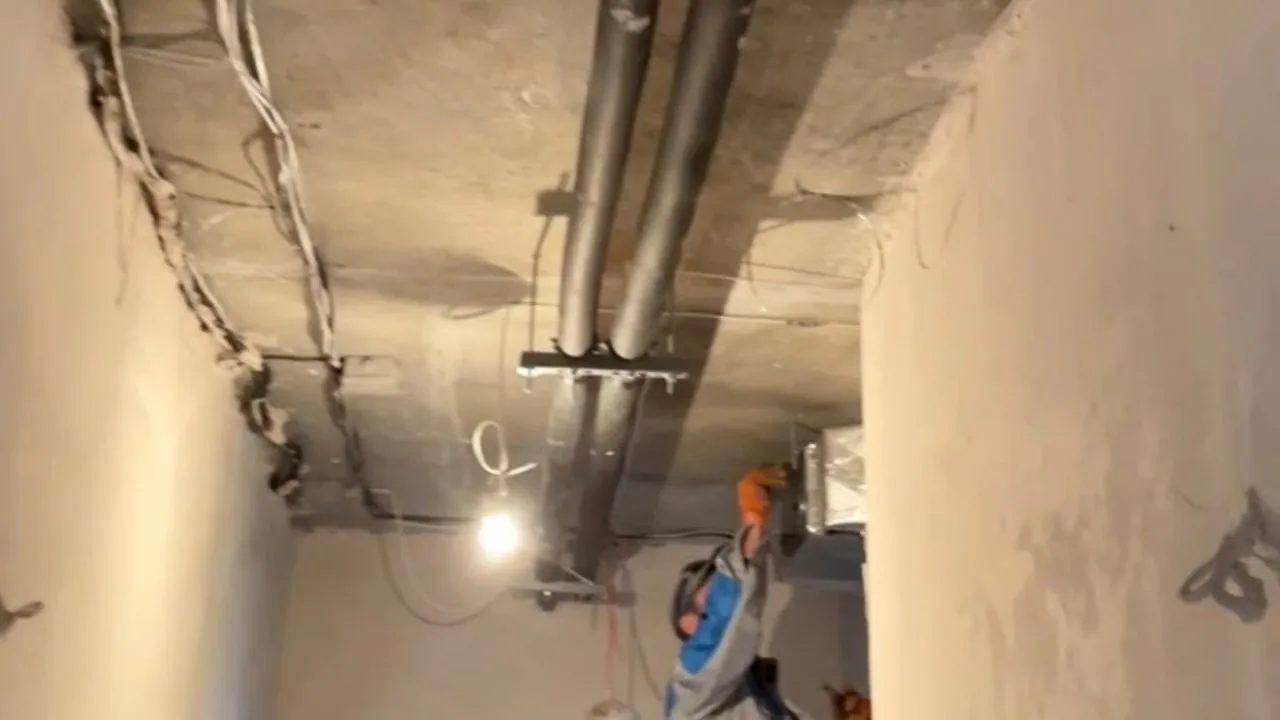

Photo 01: Apartment ventilation installation in Kyiv: insulated mains were laid, routes were fixed on hangers, and the supply assembly was connected. Airtightness and stable airflow were confirmed during inspection.

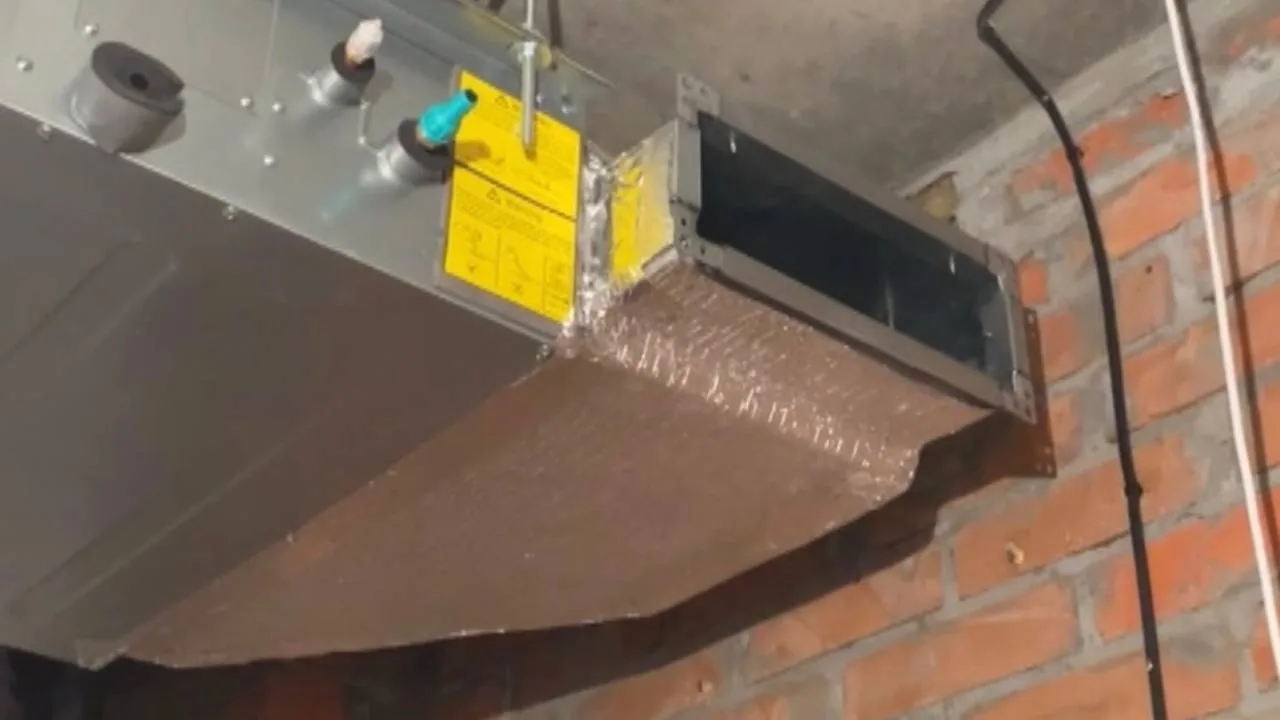

Photo 02: Apartment ventilation and air-conditioning installation in Kyiv: a ducted unit and insulated supply air duct were installed. After connection, the assembly was checked for proper operation and absence of condensation on the insulation.

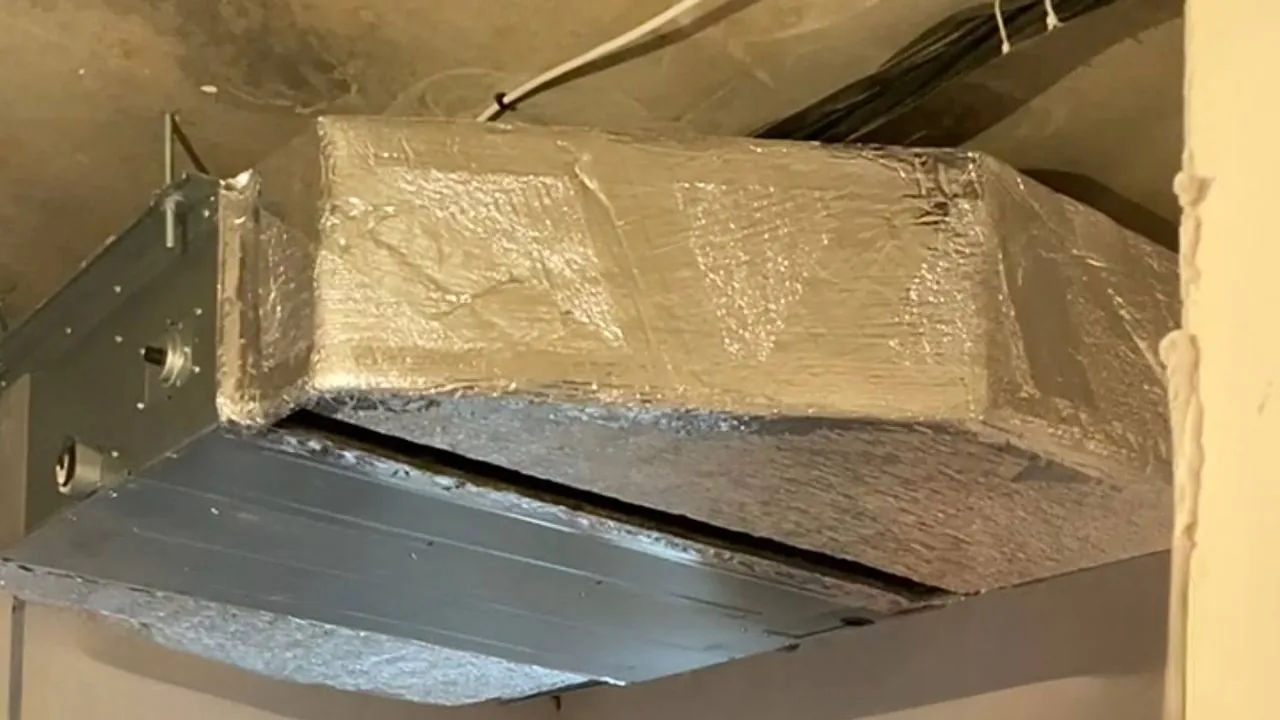

Photo 03: Apartment ventilation installation in Kyiv: the ventilation module was integrated into the ceiling void with maintenance clearances, and both the casing and ducts were insulated. Supply and exhaust operation was confirmed during inspection.

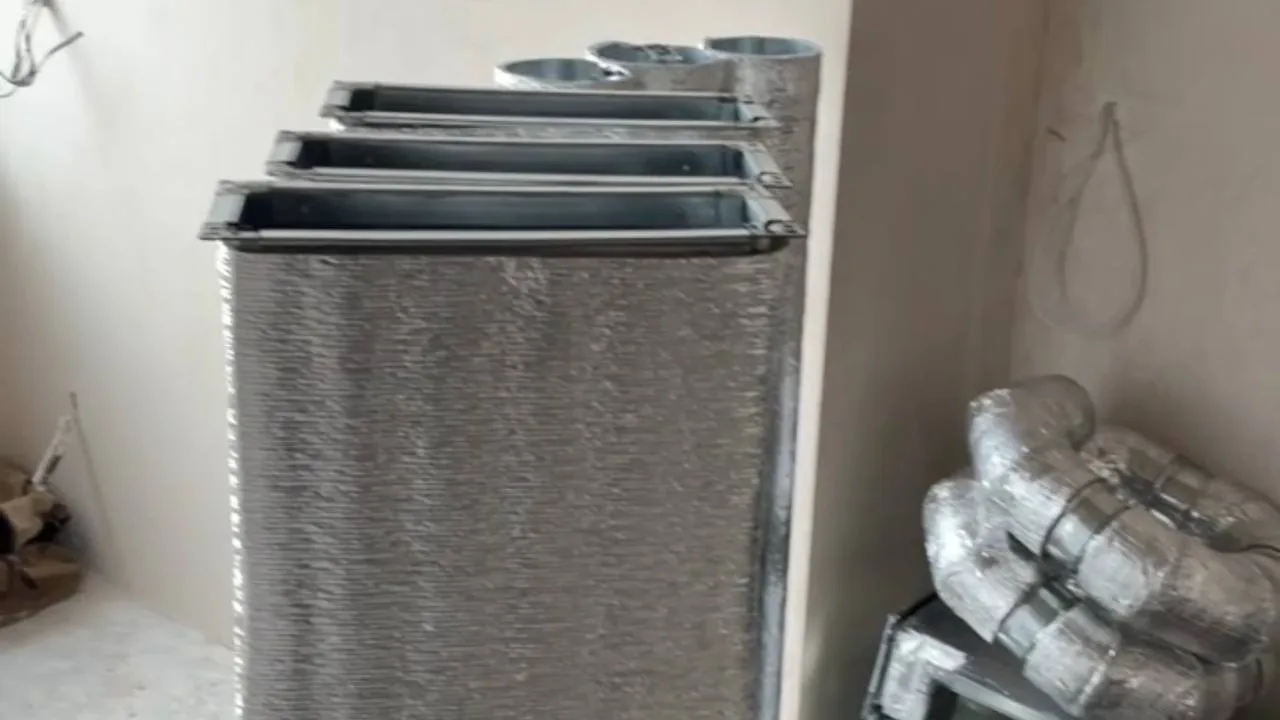

Photo 04: Apartment ventilation installation in Kyiv: a heat-recovery unit was installed, supply and exhaust mains were formed, and the system was prepared for piping and connection. After commissioning, heat recovery and air exchange in the living zones were verified.

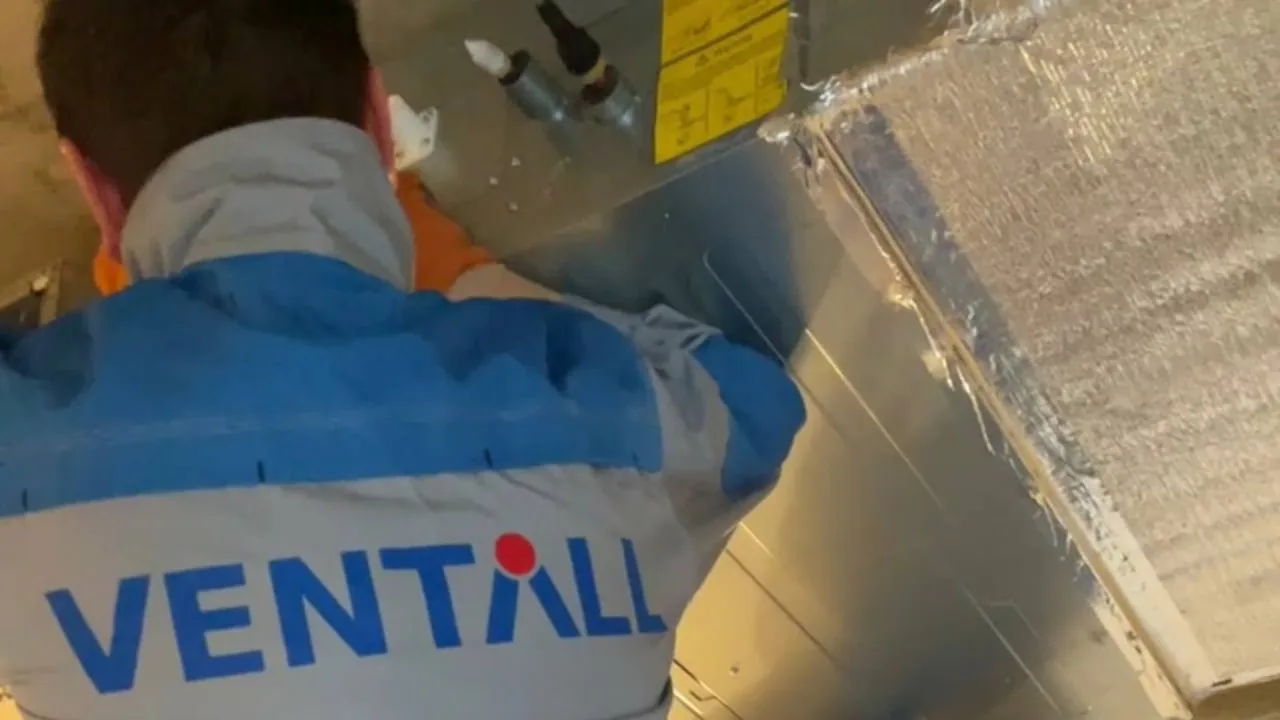

Photo 05: Final stage of apartment ventilation installation in Kyiv: the ventilation unit was connected and the interface nodes were checked. The system was handed over for commissioning and startup.
